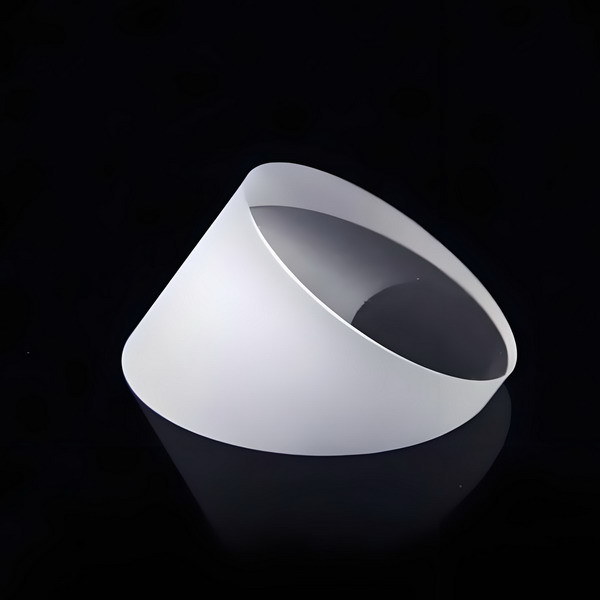

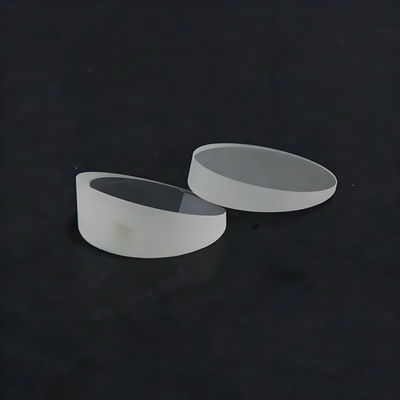

Optical Glass Wedge Prism For Beam Deviation In Scientific Instrumentation

Optical Glass Wedge Prism For Beam Deviation In Scientific Instrumentation

Material‌
1.High-Purity Optical Glass (e.g., N-BK7, Fused Silica)‌: Ensures minimal light absorption and high thermal stability for precision applications‌
2.Anti-Reflective (AR) Coatings‌: Reduces surface reflections to enhance transmission efficiency (>99% in visible-NIR spectra)‌

Key Properties‌
1.Precision Beam Deviation‌: Angular accuracy of ±1 arcminute for controlled light path redirection‌
2.Low Dispersion‌: Maintains beam coherence by minimizing chromatic aberration‌
3.Environmental Robustness‌: Withstands vibrations, temperature extremes (-40°C to +120°C), and humidity

Primary Functions‌
1.Beam Steering‌: Deflects laser or light paths in spectroscopy, interferometry, and alignment systems‌
2.Optical Path Compensation‌: Corrects alignment errors in complex instrumentation setups‌
3.Image Displacement‌: Adjusts image position in microscopy or telescopic systems without altering focus‌

Applications‌
1.Scientific Instruments‌: Used in spectrometers, monochromators, and laser interferometers for precise light control‌
2.Medical Imaging‌: Integrates into OCT (Optical Coherence Tomography) devices for beam manipulation‌
3.Industrial Metrology‌: Ensures accuracy in laser-based measurement tools for manufacturing QA
