High-precision Optical Right Angle Prism For Accurate Light Reflection In Scientific Instruments

I'm Online Chat Now

High-precision Optical Right Angle Prism For Accurate Light Reflection In Scientific Instruments

High-precision Optical Right Angle Prism For Accurate Light Reflection In Scientific Instruments
High-precision Optical Right Angle Prism For Accurate Light Reflection In Scientific Instruments

Large Image :  High-precision Optical Right Angle Prism For Accurate Light Reflection In Scientific Instruments

Product Details:
Place of Origin: Shanghai, China
Brand Name: Longway Glass
Certification: ISO9001
Model Number: LW1609223
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: NEGOTIATION
Packaging Details: electrolytic capacitor paper,foam,carton
Payment Terms: T/T,Western Union
Supply Ability: 25000 Pieces per Month

High-precision Optical Right Angle Prism For Accurate Light Reflection In Scientific Instruments

Description
Structure: Prism Material: Optical Glass
Surface: Polished Transmission: Over 90%
Coating: Available Processing: Grinding And Polishing
Application: Optics And Laser OEM: Available
Highlight:

High-precision Optical Prism

,

BK7 Right Angle Prism

,

Accurate Light Reflection Right Angle Prism



High-precision Optical Right Angle Prism For Accurate Light Reflection In Scientific Instruments

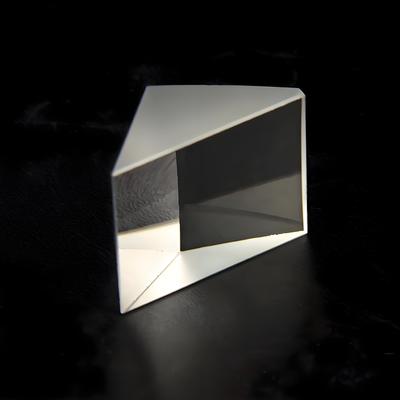

A high-precision optical right angle prism is a fundamental component engineered to deliver exceptional accuracy in controlling light paths within scientific and industrial instruments. Manufactured to exacting standards, these prisms ensure minimal wavefront distortion and reliable performance in demanding applications where precision is paramount.


Material Composition

  • Optical Glass: Primarily fabricated from N-BK7 or equivalent borosilicate crown glass

  • Fused Silica: Alternative material for UV applications or environments requiring superior thermal stability and lower thermal expansion

  • Coating Options: Available with various optical coatings including protected aluminum for broad-wavelength reflection or dielectric coatings for enhanced laser applications

Key Properties

  • Exceptional Angular Accuracy: Typically maintains 90° angle within ±15 arcseconds tolerance

  • Superior Surface Quality: Features λ/10 surface flatness or better with 20-10 scratch-dig specifications

  • High Laser Damage Threshold: Withstands high-power laser applications without degradation

  • Thermal Stability: Maintains optical performance across wide temperature ranges

  • Precision Polishing: Optical surfaces polished to laser-grade quality for minimal scatter and absorption

Primary Functions

  • Beam Steering: Redirects light paths at precise 90° angles using total internal reflection principle

  • Image Rotation: Serves as an efficient image rotation and inversion component in optical systems

  • Beam Combining: Enables precise beam combination when used in pairs with appropriate coatings

  • Retroreflection: Functions as a 180° retroreflector when properly aligned in optical paths

Industrial Applications

  • Scientific Research: Essential in interferometers, spectrometers, and laboratory optical benches

  • Medical Imaging: Integrated into endoscopic systems and diagnostic equipment

  • Laser Systems: Critical for beam delivery in industrial laser processing and medical laser devices

  • Aerospace & Defense: Used in targeting systems, periscopes, and optical alignment tools

  • Metrology Instruments: Incorporated into autocollimators and precision measurement devices

  • Semiconductor Manufacturing: Employed in wafer inspection and lithography equipment

This comprehensive optical component continues to be indispensable across multiple scientific and industrial sectors, providing reliable light manipulation where precision and durability are crucial for system performance and measurement accuracy.


Item Optical Prism
Material Optical glass, Qurartz glass, borosilicate glass,
Diameter Tolerance +0/-0.15 mm
Thickness Tolerance +/-0.15mm
Processed by grinding, polishing
Surface Quality 80/50,60/40,40/20
Material Quality no scratches and air bubble
Transmission above 90%
Chamfer 0.1-0.5 mm x 45°
Surface Coating Available
