Polished Optical Borosilicate Glass Lens Explosion Proof Lamp Lenses

I'm Online Chat Now

Polished Optical Borosilicate Glass Lens Explosion Proof Lamp Lenses

Polished Optical Borosilicate Glass Lens Explosion Proof Lamp Lenses
Polished Optical Borosilicate Glass Lens Explosion Proof Lamp Lenses Polished Optical Borosilicate Glass Lens Explosion Proof Lamp Lenses

Large Image :  Polished Optical Borosilicate Glass Lens Explosion Proof Lamp Lenses

Product Details:
Place of Origin: Shanghai, China
Brand Name: LONGWAY
Certification: ISO9001
Model Number: LW1609201453
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: NEGOTIATION
Packaging Details: electrolytic capacitor paper,foam,carton
Payment Terms: T/T,Western Union,D/P
Supply Ability: 70000 Pieces per Month

Polished Optical Borosilicate Glass Lens Explosion Proof Lamp Lenses

Description
Customized Support: OEM Structure: Convex Concave
Surface: Polished Transmission: Over 92%
Processing: Grinding And Polishing Application: Optics And Lighting
Highlight:

Polished Optical Borosilicate Glass lens

,

Explosion Proof Lamp Lenses

,

Borosiliate glass Lamp Lenses





Polishing Optical Borosilicate Glass Explosion-Proof Lamp Lenses



Material:
The Polishing Optical Borosilicate Glass Explosion-Proof Lamp Lenses are made from high-quality borosilicate glass, a type of heat-resistant and chemically resistant glass that is known for its excellent optical clarity. This material provides exceptional durability and resistance to thermal shock.



Quality:
These lenses have undergone rigorous polishing processes to achieve an extremely smooth surface finish, ensuring minimal distortion and maximum light transmission. The high-quality borosilicate glass used in their construction ensures a long lifespan and resistance to scratches and chips.



Function:
The primary function of these explosion-proof lamp lenses is to provide a safe and reliable lighting solution for hazardous environments where explosive gases or dust may be present. They are designed to contain and dissipate heat generated by the light source, preventing ignition of flammable materials.



Usage:
These lenses are commonly used in various industries that require explosion-proof lighting solutions, including:

  • Oil refineries
  • Chemical plants
  • Gas stations
  • Mining operations

Their optical clarity, durability, and precision make them an ideal choice for demanding industrial applications where safety is paramount.



Name glass lens or glass cover
Material Pyrex, borosilicate glass 3.3
Diameter Tolerance +0/-0.15 mm
Thickness Tolerance +/-0.2 mm
Processed molding, grinding, polishing
Working temperature resisting high temperature shock
Surface Quality Optical grade
Material Quality no scratches and air bubble
Transmission above 92%
Chamfer 0.1-0.3 mm x 45 degree
Surface Coating Available
Usage Lighting system

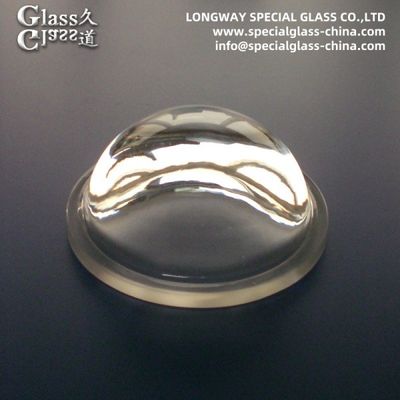

Polished Optical Borosilicate Glass Lens Explosion Proof Lamp Lenses 0

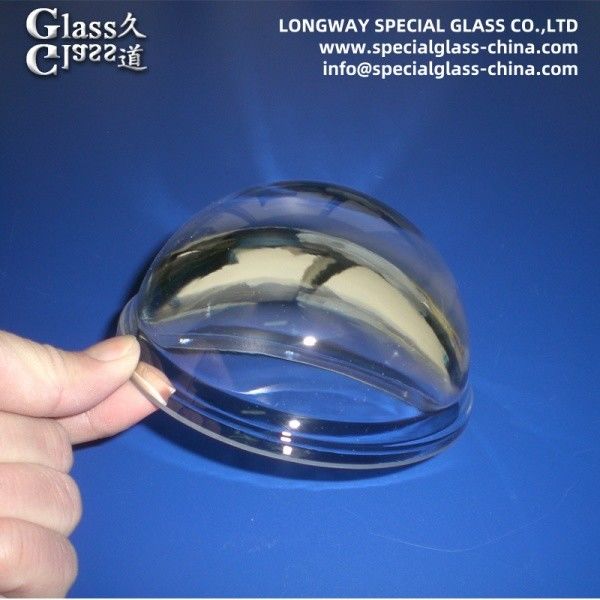

Polished Optical Borosilicate Glass Lens Explosion Proof Lamp Lenses 1



Polished Optical Borosilicate Glass Lens Explosion Proof Lamp Lenses 2
